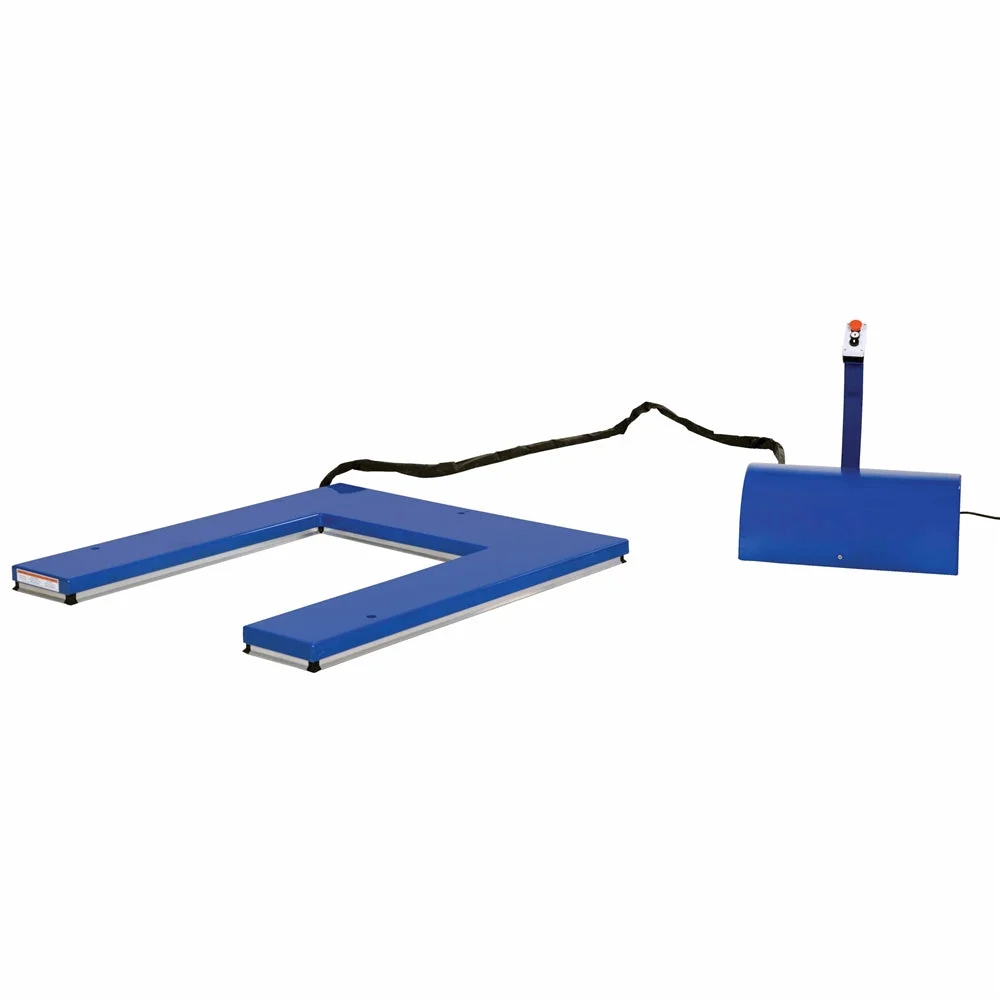

Vestil U Type Electric Lift Table 2K Capacity EHU-2
- Low profile “U” type electric lift table has an open center that enables a pallet truck to place a load on the platform
- Equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed
- UP and DOWN push button raises and lowers the unit
- features toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop buttons for safety
| Uniform Capacity (lbs.) | 2000 |
| Raised Height (in.) | 33-1/2 |
| Voltage/Phase | 115/Single |
| Control Box Voltage | 24 |
| Deck Inside Width (in.) | 29-3/4 |
| Deck Inside Length (in.) | 41-1/4 |
| Remote Power Unit Width (in.) | 14-3/4 |
| Remote Power Unit Length (in.) | 26-3/4 |
| Remote Power Unit Height (in.) | 9-1/2 |
| Lift Speed (sec.) | 16.8 |
| Horse Power (HP) | 1.5 |
