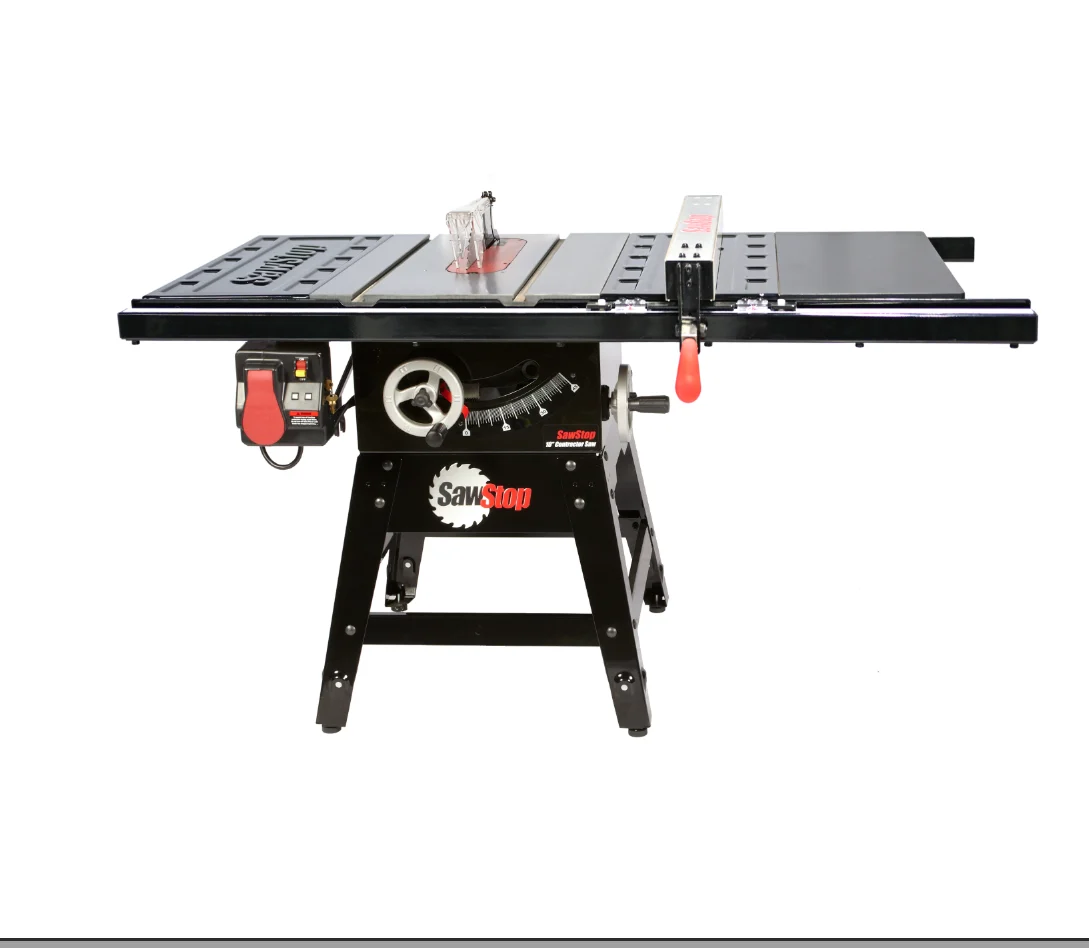

SawStop CNS Contractor Saw
SawStop Total Safety
We didnt stop at our patented safety system.
| Models and Dimensions (with motor): | CNS175-SFA30: Includes aluminum extrusion fence & 30″ rails; 58-1/2″ w, 40″ d, 34-3/4″h CNS175-TGP: Includes Proffesional Series T-Glide Fence & 36″ rails; 69-1/8″w, 45″d, 34-3/4″ h CNS175-TGP52: Includes Professional Series T-glide fence & 52″ rails; 85-1/4″ w, 45″d, 34-3/4″ h |
| Motor: | 1.75 HP, 110-120V, 15A User-configurable to 220-240V, 7.5A |
| Footprint: | 25-3/4″ w, 27″ d |
| Cast iron table: | 20″ w, 27″ d |
| Extension Wing: | 12″ w, 27″ d |
| Shipping weight (approx.): | 280 lbs. |
| Blade: | 10″ diameter, 5/8″ arbor |
| Blade Tilt: | Left |
| Maximum Depth of cut: | 3-1/8″ |
| Dado diameter: | 8″ |
| Dado max. width: | 13/16″ |
| Dust Collection port: | 4″ diameter |
| Insert: | Zero-Clearance |
| Blade Guard: | Polycarbonate, thin profile |
| Riving knife / splitter | 2mm thick |
