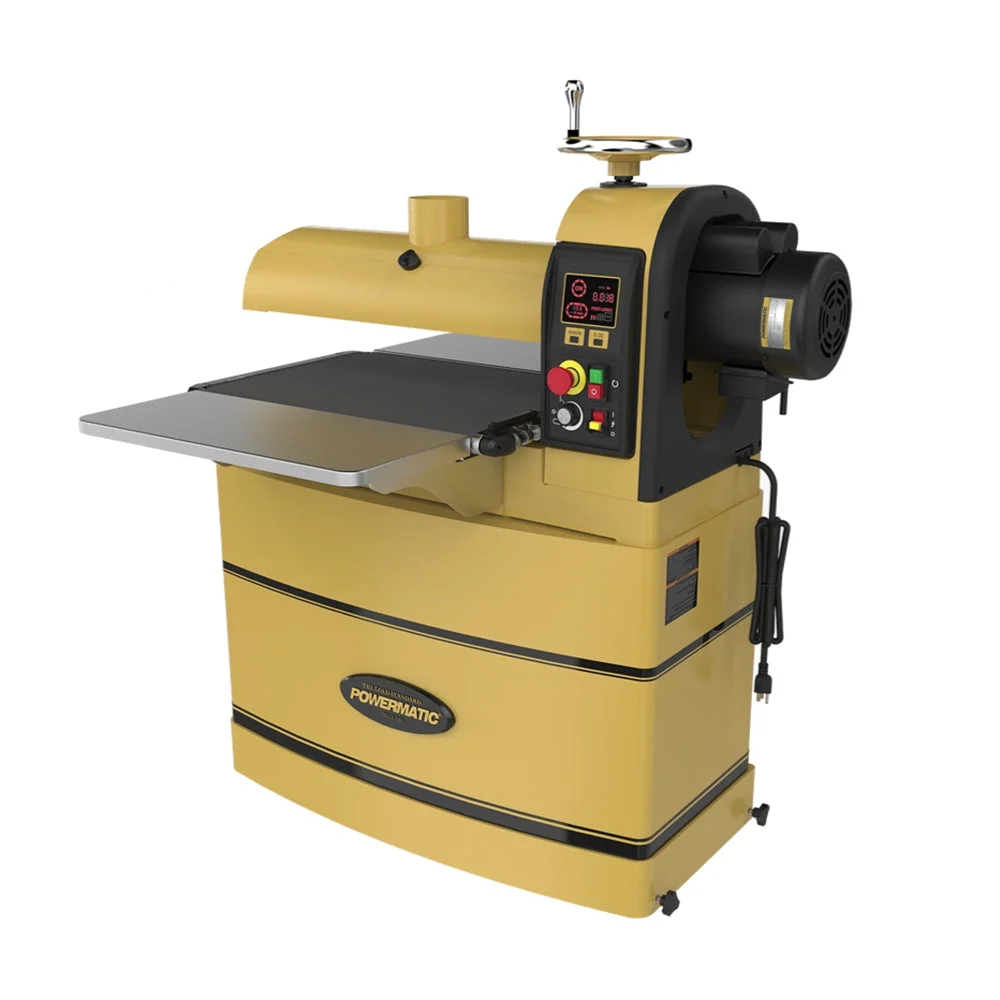

Powermatic 1792244 PPM2244 Drum Sander, 1-3/4 Horse Power, 115 Volt

• Integrated LED Control Panel shows power, belt speed, and DRO
• Equipped with Feed Logic to produce an exceptional finish while preventing machine overload
• Secondary, absolute depth scale provides an additional height reading
• Drum carriage is cast iron to provide greater strength and consistent performance
• Steel hood with a 4″ dust port provides excellent dust collection
• Emergency stop for quick shutoff
• Large, chrome handwheel makes adjusting the drum height smooth and simple
• Belt tracking is designed to reduce the need for manual adjustment
• Integrated casters make it easy to move unit around the shop
• Included infeed/outfeed tables provide 37-1/2 inches of support for the workpiece
• Independent feed and drive motors provide exceptional sanding control
• Precision-flattened reinforced steel conveyor bed and no-give power feed belt provide a flat sanding surface for better results
• Closed stand with storage for keeping abrasives organized

• Drum Length (In.)22
• Number of Sanding Drums1
• Drum Speed (RPM)1,720
• Drum Diameter (In.)5
• Conveyor Motor (HP)1/30
• Conveyor Speed (FPM)Variable 0-10
• Maximum Board Thickness (In.)4
• Maximum Board Width (In.)44
• Minimum Board Length (In.)2-3/8
• Minimum Board Thickness (In.)1/32
• Dust Collection Minimum CFM Required (CFM)800
• Dust Port Outside Diameter (In.)4
• Motor Power (HP)1-3/4
• Motor Phase1
• Motor Voltage (V.)115 only
• Prewired Voltage (V.)115
• Motor Current (Amps)14
• Recommended Circuit Size (Amps.)20
