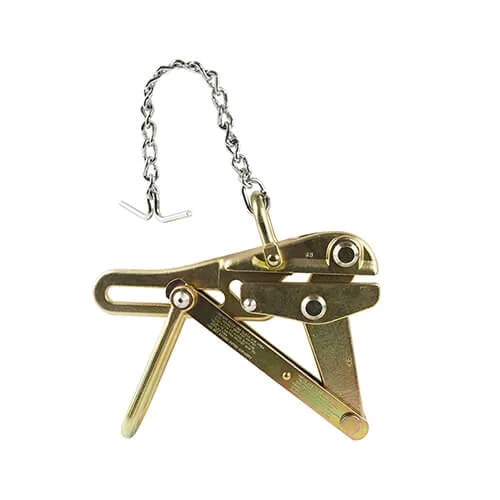

Klein 16845CAT Chicago Grip Coated Guy Wire with Chain

This Chicago Grip is designed specifically to work with coated guy strand and EHS cable. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability. The chain, toggle and shackle keep thegrip from falling off the cable. The 5-Inch jaw length increases the surface area contact with the cable minimizing cable damage. The sawtooth jaw profile resists galvanization build-up.

• Sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
• Equipped with chain, toggle and shackle to keep grip from falling off the cable
• Designed for cable sizes 0.218 to 0.55-Inch (5.54 to 13.97 mm)
• 5” (127 mm) jaw length for extra gripping area on stranded cable
• Spring closes grip on cable helping to maintain initial position
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• Maximum Safe Load is 8000-Pound (3629 kg)

• Type: Chicago Grip
• Application: Wire Pulling
• Special Features: Sawtooth Jaw Profile Resists Build-up
• Overall Length: 13.3” (337.8 mm)
• Overall Height: 2.5” (63.5 mm)
• Overall Width: 7.6” (193.0 mm)
• Cable Type: EHS Steel Strand
• Cable Diameter: 0.218” to 0.55” (5.54 to 13.97 mm)
• Jaw Type: Aggressive
• Jaw Length: 5” (127.0 mm)
• Maximum Safe Load: 8000 lb (3629 kg)
• Weight: 6.9 lb (3.1 kg)
• UPC: 092644470707
